Case Study
We have proven technology and experience to meet the various needs of our customers. Here are some examples.
Eliminates biting of the side seal part of the liquid bag
Ultrasonic oscillation repels the filling adhering to the inner surface of the film just before horizontal sealing in a liquid packaging machine.
It has the effect of improving sealing quality as well as preventing the lateral sealing part from getting caught.
(Patent No. 5722675 and 3 other related patents)
Liquid packaging machine FR3 + SS3 (ultrasonic bite prevention device) option

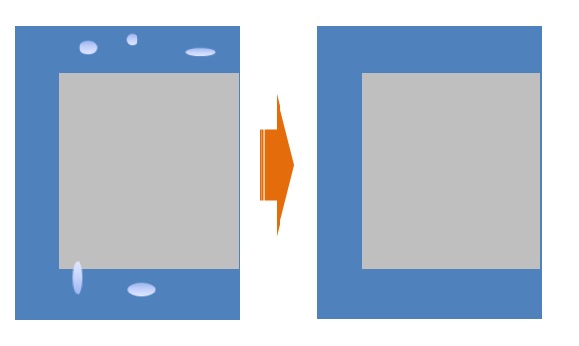

Prevent overheating foaming of liquid bag
In a liquid packaging machine, the fine pattern on the surface of the horizontal sealer disperses the overheated foam that occurs in the horizontal seal area of the bag, preventing defective bag sealing.
(Patent No. 5090942 acquired)
Liquid packaging machine FR3+V-seal option

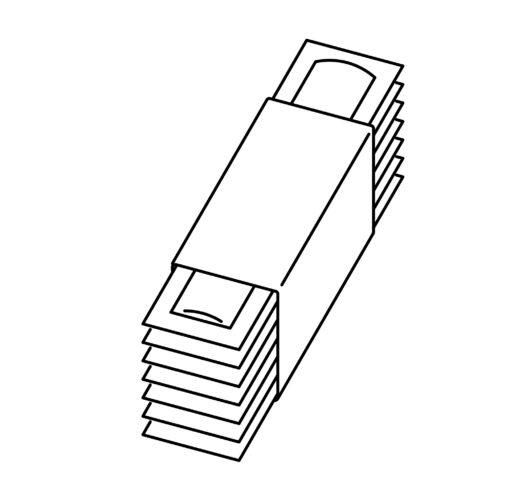

Bundle several stick bags together with a band film.
This is a line that arranges the posture of several stick bags made by a stick packaging machine and then bundles them with a band film.
Stick packaging machine FC1000α → Stacking device → Banding machine

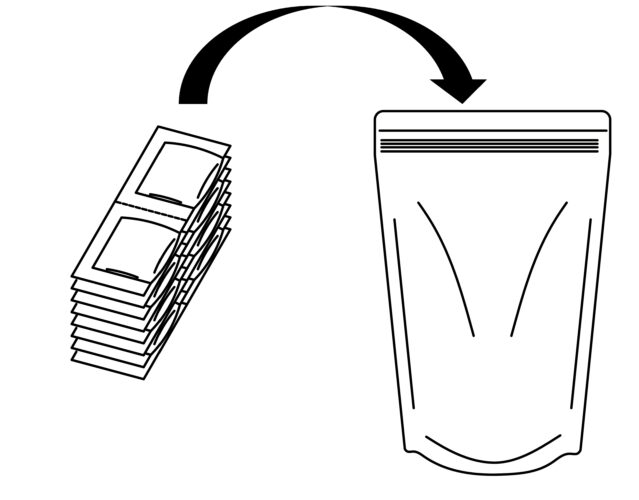

Put the bags together and pack them into a large standing pouch with a zipper.
This line feeds any quantity of 3-side-sealed bags made by a high-speed rotary packaging machine into stand-up pouches with zippers, performs metal inspections and weight inspections, and then ships them.
High-speed rotary packaging machine SR500 → Stacking device → Bag feed packaging machine → Metal detector machine → Weight checker machine

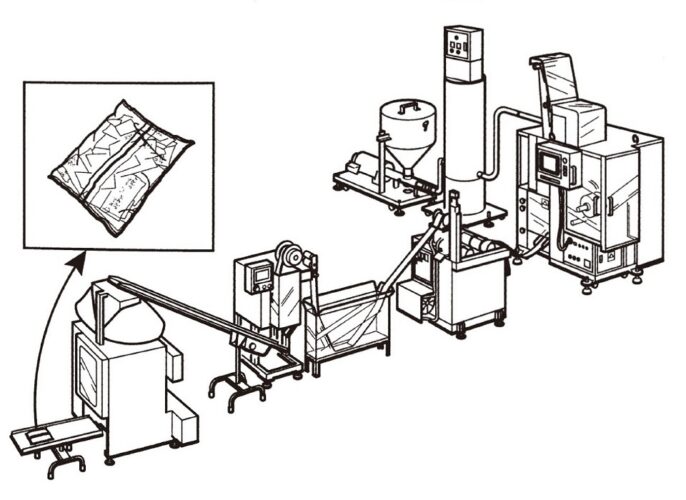

Outer packaging of multiple bags
A liquid packaging machine forms a continuous bag from the filling liquid heated to sterilize or increase the fluidity, cools the continuous bag, cuts it into individual bags, and collects an arbitrary number of these bags into an outer bag. A production line for packaging.
Heat exchanger→Liquid packaging machine FR3→Cooling device→Cut device→Outer bag packaging machine MPS2K

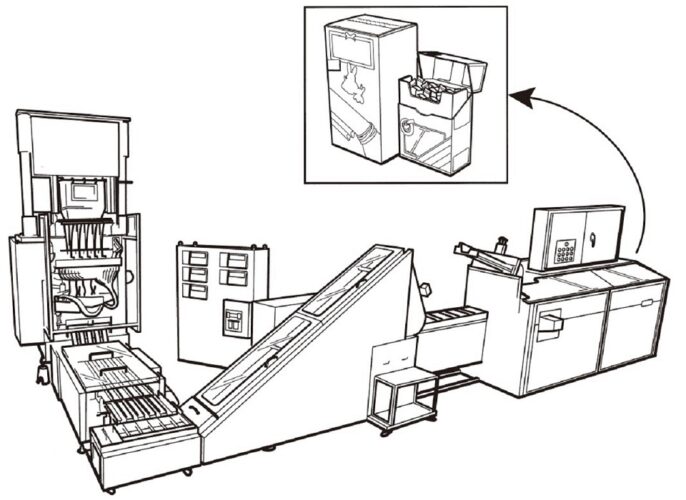

Pack the stick bags together in a paper box
This is a production line that measures the weight of stick bags made by a stick packaging machine, and packs only the desired number of non-defective products into paper boxes.
Stick packaging machine FC1000→Weight checker→Stacking device→Cartoner

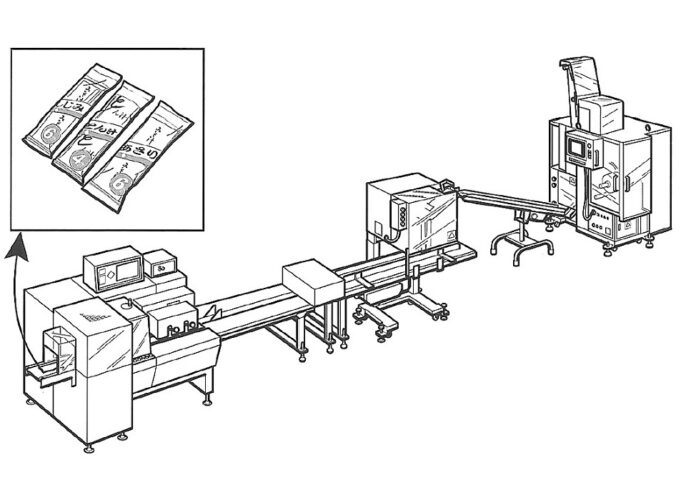

2-connected perforated bags are stacked and packed together for outer bag packaging
This is a production line that stacks three tiers of two-connected perforated bags made by a liquid packaging machine, and then packs the outer bag with a horizontal pillow.
Liquid packaging machine FR3→Bag accumulation device→Horizontal pillow outer bag packaging machine.
